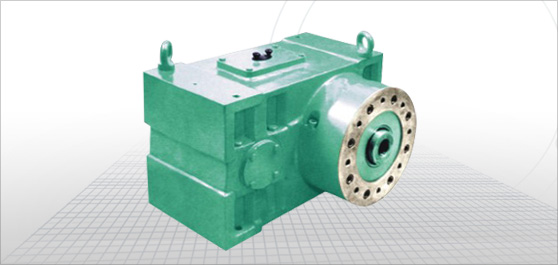

Extruder
Gear Box |
|
|
|
|
V2 -Series Extruder
Gearbox |
|
Size |
Ratio |
Spherical Roller
Thrust Bearings
(Standardised) |
Bore Dia
Out Put
(mm) |
Shaft Dia
Input
(mm) |
Max. Torque
(KNM) |
Suitable For
Max.HP (4 Pole) |
Min. Input
Speed |
|
V2 - 90 |
1: 10,15 |
29412 |
25 |
25 |
1.5 |
5
HP |
500 |
|
V2 - 125 |
1: 10,15 |
29414 |
30 |
25 |
2.5 |
7.5 HP |
500 |
|
V2 - 140 |
1: 10,15 |
29416 |
40 |
32 |
3 |
12.5 HP |
500 |
|
V2 - 160 |
1: 10,15 |
29422 |
50 |
35 |
4.4 |
20 HP |
500 |
|
V2 - 180 |
1: 10,15 |
29424 |
60 |
38 |
5.5 |
25 HP |
500 |
|
V2 - 200 |
1: 10,15 |
29426 |
65 |
38 |
8 |
30 HP |
500 |
|
|
|
|
V1 -Series Extruder Gearbox |
|
Size |
Ratio |
Spherical Roller
Thrust Bearings
(Standardised) |
Bore Dia
Out Put
(mm) |
Shaft Dia
Input
(mm) |
Max. Torque
(KNM) |
Suitable For
Max.HP (4 Pole) |
Min. Input
Speed |
|
V1 - 140 |
1: 6,5 |
29416 |
30 |
35 |
3 |
7.5 HP |
500 |
|
V1 - 160 |
1: 6,5 |
29418 |
40 |
38.5 |
4.4 |
10
HP |
500 |
|
V1 - 180 |
1: 6,5 |
29420 |
50 |
40 |
5.5 |
15
HP |
500 |
|
|
|
1. MODELS ABOVE V2-125 ARE WITH FORCED COOLING
EXCEPT IN SINGLE STAGE |
|
2. BEARINGS:- SKF/ZKL OR EQUIVALENT |
|
3. P&F :- 4% EXTRA |
|
4. LUBRICATION:- SHELL TIVELA/KLUBER OIL -320
GRADE |
|
5. APPLICATION:- PLEASE SPECIFY APPLICATION
BEFORE PURCHASING THE GEAR BOX. |
|
6. MAXIMUM HP IS CALCULATED ON STARTING LOAD ON
THE GEAR BOX. THE HP RATING WILL INCREASE
PROPORTIONATELY WITH THE INCREASE IN INPUT SPEED |
|
7. OUTPUT IS SINGLE KEYWAY (DIFFERENT VERSIONS
AVAILABLE ON REQUEST) |
|
8. All DIMENSIONS SUBJECT TO CHANGE WITHOUT
NOTICE. |
|
|
|
Size |
A |
C |
D |
D1 |
d1 |
d1 |
d2 |
E |
F |
G |
H |
I |
J |
K |
L |
L1 |
M1 |
M2 |
|
H2-90EX |
90 |
115 |
104 |
140 |
22.020
22.002 |
25.009
24.996 |
12 |
120 |
340 |
85 |
50 |
16 |
95 |
115 |
25 |
75 |
M10 |
M5 |
|
H2-125EX |
125 |
150 |
140 |
185 |
40.050
40.025 |
25.009
24.996 |
14 |
154 |
465 |
125 |
60 |
16 |
125 |
185 |
30 |
100 |
M12 |
M5 |
|
H2-140EX |
140 |
165 |
160 |
220 |
45.050
45.025 |
32.018
32.002 |
14 |
174 |
495 |
140 |
80 |
20 |
140 |
220 |
30 |
115 |
M16 |
M8 |
|
H2-160EX |
160 |
145 |
165 |
202.5 |
40.050
40.025 |
32.018
32.002 |
18 |
194 |
490 |
182 |
60 |
20 |
168 |
168 |
32 |
100 |
M12 |
M8 |
|
H2-180EX |
180 |
200 |
200 |
320 |
75.060
75.030 |
32.018
32.002 |
18 |
214 |
610 |
175 |
80 |
32 |
180 |
273 |
40 |
170 |
M16 |
M16 |
|
H2-200EX |
200 |
255 |
255 |
330 |
80.060
80.030 |
32.018
32.002 |
22 |
239 |
680 |
185 |
80 |
32 |
200 |
300 |
40 |
200 |
M16 |
M16 |
|
|
|
Size |
M3 |
N |
N1 |
P |
P1 |
Q |
R |
S |
S1 |
T |
T1 |
T2 |
L1 |
V |
W |
Z |
Q |
|
H2-90EX |
M10 |
170 |
60 |
115 |
6 |
290 |
85 |
25.400
24.300 |
28.000
27.800 |
6JS9 |
8Pg |
15 |
55.000
54.954 |
11OH7 |
170 |
20 |
4 |
|
H2-125EX |
M12 |
194 |
100 |
160 |
8 |
405 |
115 |
43.500
43.300 |
28.000
27.800 |
12JS9 |
8Pg |
20 |
70.000
69.954 |
15OH7 |
220 |
20 |
4 |
|
H2-140EX |
M12 |
224 |
100 |
190 |
8 |
435 |
135 |
43.000
48.800 |
35.000
34.800 |
14JS9 |
10Pg |
20 |
80.000
79.954 |
17OH7 |
270 |
25 |
4 |
|
H2-160EX |
M16 |
210 |
110 |
145 |
8 |
425 |
110 |
43.500
43.300 |
33.200
33.000 |
10JS9 |
10Pg |
20 |
65.000
64.654 |
14OH7 |
245 |
20 |
4 |
|
H2-180EX |
M16 |
290 |
120 |
250 |
8 |
530 |
160 |
80.100
79.900 |
41.000
40.800 |
20JS9 |
10Pg |
20 |
130.000
129.948 |
27OH7 |
370 |
34 |
4 |
|
H2-200EX |
M20 |
310 |
125 |
265 |
8 |
600 |
180 |
65.600
85.400 |
41.000
40.800 |
22JS9 |
10Pg |
25 |
140.000
139.937 |
28OH7 |
380 |
35 |
4 |
|
|
|
