Agitator
& Mixers |
|
|
 Eltek
Equipment
: Manufactures

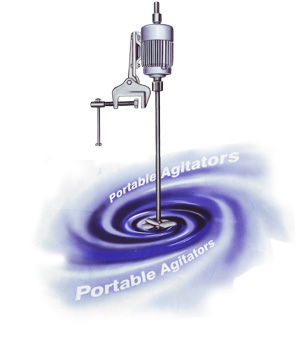

Laboratory Stirrer, Portable Mixer, Hollow Shaft Top
Entry/Side Entry Agitator and Emulsifier.
All above Equipment can be supplied with VF drive to
get variable speed and frequency. For applications
where instant Start/Stop is required or to cut
Production cycles in fixed space and time. Eltek
brake Motors are used for the equipment.
Motors
: Eltek
Motor are mad in-house that confilm to IEC
Specifications and BIS standards. All motors are
asynchronous three phase totally enclosed fan cooled
(T.E.F.C.) type with class ‘F’ insulation and Index
of Protection IP 55.
Eltek
Hollow shaft Stirrer PHA Model
: Eltek
hollow shaft stirrer comes with brass nut and collet
and the shaft height can be easily adjusted in the
hollow spindle for smooth and vibration-free
operation. All the stirrer shaft are of stainless
steel AISI 304. In case of concentrated chemicals
AISI 316 grade are recommended. The Propellers are
punched out of S.S. Plates and duly curved at an
angle. If the vessel is deep and the solution is of
high viscosity value, two propellers are recommended
for uniform flow and effortless mixing
|
|
3 x Bladed Propeller Type AS - 1 |
|
 |
|
|
|
4
x Bladed Propeller Type AS -
2 |
|
 |
|
|
|
4
x Bladed Diamond Type AS - 3 |
|
 |
|
|
|
|
|
4
x Bladed Diamond Type AS - 3 |
|
|
|
|
|
2 x Bladed Centrifugal Type AS - 4 |
|
 |
|
|
|
2 x Bladed Anchor Type AS - 4 |
|
 |
|
|
|
|
|
Technical Data :
PHA Model |
|
Model No. |
HP / KW |
RPM |
DØmm |
YØmm |
|
PHA-1/B-1A |
0.5 / 0.37 |
720 |
150 |
120 |
|
PHA-1/6-18 |
0.5 / 0.37 |
960 |
150 |
120 |
|
PHA-1/4-1C |
0.5 / 0.37 |
1440 |
120 |
100 |
|
PHA-2/8-2A |
1.0 / 0.75 |
720 |
170 |
150 |
|
PHA-2/6-2B |
1.0 / 0.75 |
960 |
170 |
150 |
|
PHA-2/4-2C |
1.0 / 0.75 |
1440 |
150 |
120 |
|
PHA-3/8-3A |
2.0 / 1.5 |
720 |
200 |
170 |
|
PHA-3/6-3B |
2.0 / 1.5 |
960 |
200 |
170 |
|
PHA-3/4-3C |
2.0 / 1.5 |
1440 |
170 |
150 |
|
PHA-4/8-4A |
3.0 / 2.2 |
720 |
200 |
170 |
|
PHA-4/6-4B |
3.0 / 2.2 |
960 |
200 |
170 |
|
PHA-4/4-4C |
3.0 / 2.2 |
1440 |
200 |
170 |
|
|
|
|
|
DØ of propeller when only one is used.
Y Ø of propeller when two are used. |
|
Eltek Low Speed Geared Stirrers EL Model |
|
For mixing highly viscous fluids Eltek low speed
geared stirrer provided with marine type impeller
are used.
Further if speed lower than 360 RPM is desired, then
turbine type impellers are provided to achieve
result.
Anchor type impellers are provided for complete
mixing ensuring that batch does not settle down
inside the tank.
Motors from 0.5 HP to 3 HP can be supplied for this
range. All ratios available as per customers
requirement.
Dimension available on request. |
|
|
Technical Data : EL
Model |
 |
|
Model No. |
HP / KW |
RPM |
DØmm |
YØmm |
|
EL-9-2 |
0.33 / 0.25 |
160 |
150 |
120 |
|
EL-9-3 |
0.50 / 0.37 |
240 |
200 |
170 |
|
EL-9-5 |
0.50 / 0.37 |
160 |
200 |
170 |
|
EL-9-7 |
0.75 / 0.55 |
240 |
250 |
200 |
|
EL-9-7A |
0.75 / 0.55 |
160 |
250 |
200 |
|
EL-9-9A |
1.00 / 0.75 |
360 |
200 |
250 |
|
EL-9-9B |
1.00 / 0.75 |
240 |
300 |
250 |
|
EL-9-9C |
1.00 / 0.75 |
160 |
300 |
250 |
|
EL-9-10A |
1.50 / 1.1 |
360 |
325 |
300 |
|
EL-9-10B |
1.50 / 1.1 |
240 |
325 |
300 |
|
EL-9-11A |
2.0 / 1.5 |
360 |
350 |
300 |
|
EL-9-11B |
3.0 / 2.2 |
360 |
400 |
350 |
|
|
|
|

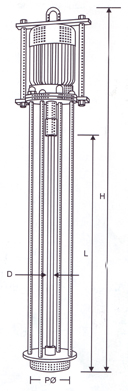

Eltek emulsifiers EMR Model are specially
recommended for all the Research Laboratories for
carrying out various process like emulsification,
missing, homogenizing, dispersion, suspension and
disintegration. At vasai plant in Thane District out R &
D team is working on various molecular analysis to cater
any type mixing and stirring application. |
|
|
|
Technical Data :
EMR Model |
 |
|
Model No. |
HP / KW |
RPM |
Dmm |
Pmm |
Hmm |
Lmm |
|
EMR-1A |
1.0 / 0.75 |
2800 |
25 |
75 |
1220 |
750 |
|
EMR-1B |
1.0 / 0.75 |
1380 |
25 |
100 |
1240 |
750 |
|
EMR-2A |
1.5 / 1.1 |
2800 |
25 |
90 |
1220 |
750 |
|
EMR-2B |
1.5 / 1.1 |
1380 |
25 |
100 |
1250 |
750 |
|
EMR-3A |
2.0 / 1.5 |
2800 |
25 |
100 |
1260 |
900 |
|
EMR-3B |
2.0 / 1.5 |
1380 |
25 |
125 |
1275 |
900 |
|
EMR-4A |
3.0 / 2.2 |
1380 |
30 |
150 |
1445 |
900 |
|
EMR-5A |
5.0 / 3.7 |
2800 |
30 |
175 |
1475 |
900 |
|
EMR-5B |
5.0 / 3.7 |
1380 |
30 |
175 |
1475 |
900 |
|
|
|
|
Material of construction : Normally all the mixers
made out of 304 type stainless steel contact parts.
Wherever the process specially calls for, 316 type
stainless steel also is offered. The other important
contact part, guide bush can be made out of Nylon.
Brass, Gunmetal or Cast Iron. Teflon can be supplied
extra, if necessary. |
|
|
|
3 x Bladed Propeller Type AS - 1 |
|
 |
|
|
|
4
x Bladed Propeller Type AS -
2 |
|
 |
|
|
|
4
x Bladed Diamond Type AS - 3 |
|
 |
|
|
|
|
|
